Fundamentals of Advanced Machining (Teaching Series)

Duration: 1 monthStarted: Apr 2025Completed: May 2025Category: manufacturing
Problem
Students often learn feeds-and-speeds tables without understanding machine and cutting limits.
Role
Designed and delivered a multi-part machining lecture series.
Method
Connected material properties, spindle power/torque, engagement, heat, and CAM choices.
Result
The deck was reused in shop discussions and advanced sessions; no controlled learning assessment is claimed.
Status
Completed May 2025; teaching outcomes are described as practical observations.

Project Narrative

This teaching project was developed to address a recurring gap in machining education: students could follow feeds-and-speeds tables but lacked a generalized understanding of why machines behave the way they do. I designed and delivered a multi-part lecture series that reframes machining from first principles, starting with material hardness (BHN), unit power, spindle torque, and duty cycles.

Rather than optimizing for specific tools or machines, the framework emphasizes transferable reasoning applicable across different CNC platforms and materials. Topics include spindle power curves, thermal limits, tool engagement dynamics, chip thinning, and the tradeoffs between high-speed and high-efficiency machining.

The goal was to help students replace fear-driven conservatism with bounded, explainable process tuning. The deck is a public record of the curriculum; the reported influence on shop discussions and later workshops is practical teaching context rather than a measured educational study.

Series Design Goal

Replace memorized feeds-and-speeds with portable first-principles reasoning

Opening frame from the lecture deck

The lecture sequence was built to help students estimate safe and efficient cuts from machine limits, material properties, and engagement geometry. Instead of treating CAM presets as fixed truths, each module teaches how to derive a defensible starting point and adjust from measured behavior at the machine.

Core Technical Modules

Power, torque, chip-load physics, and thermal limits tied into one decision flow

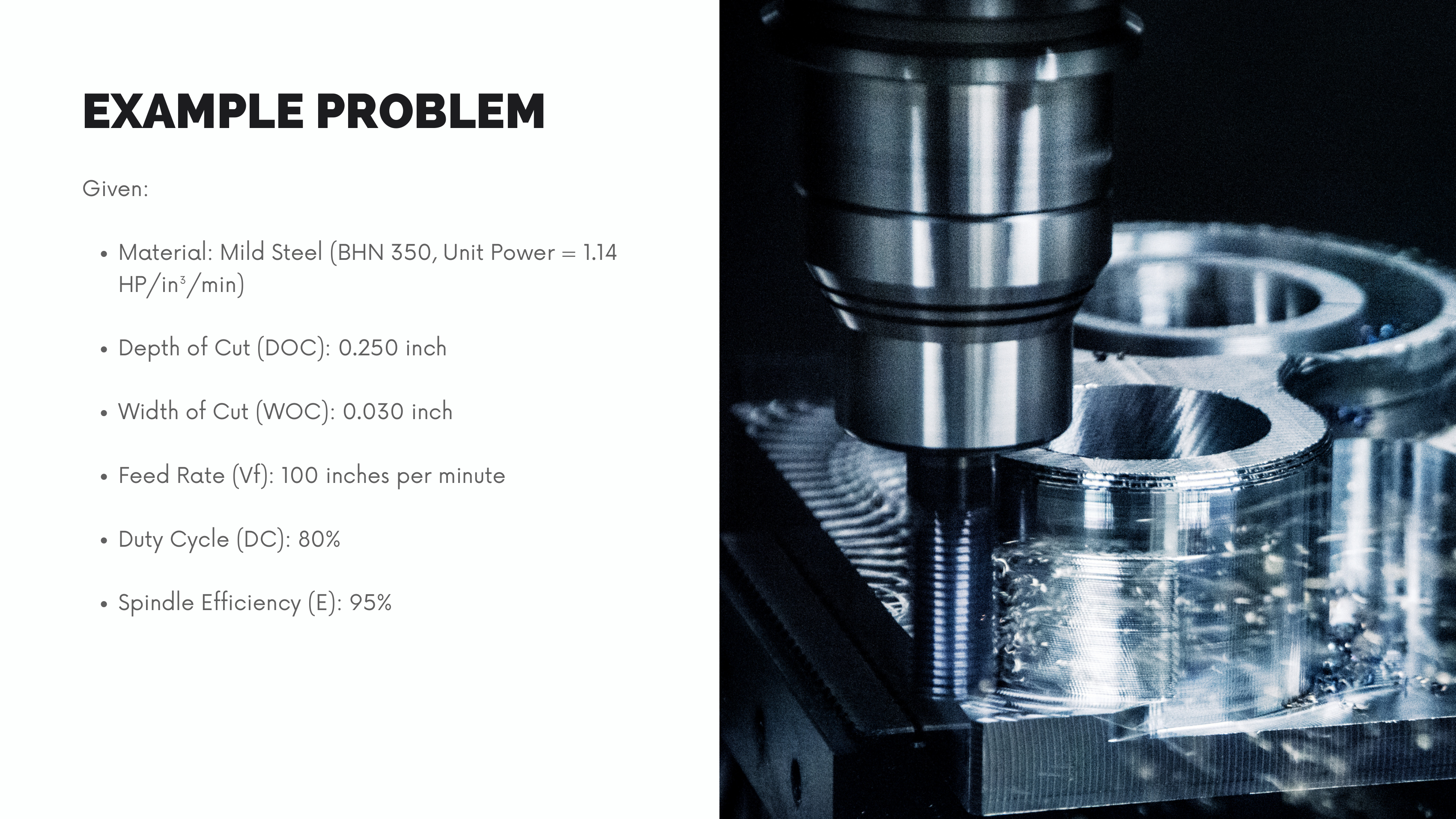

Representative visual from the power/engagement portion of the series

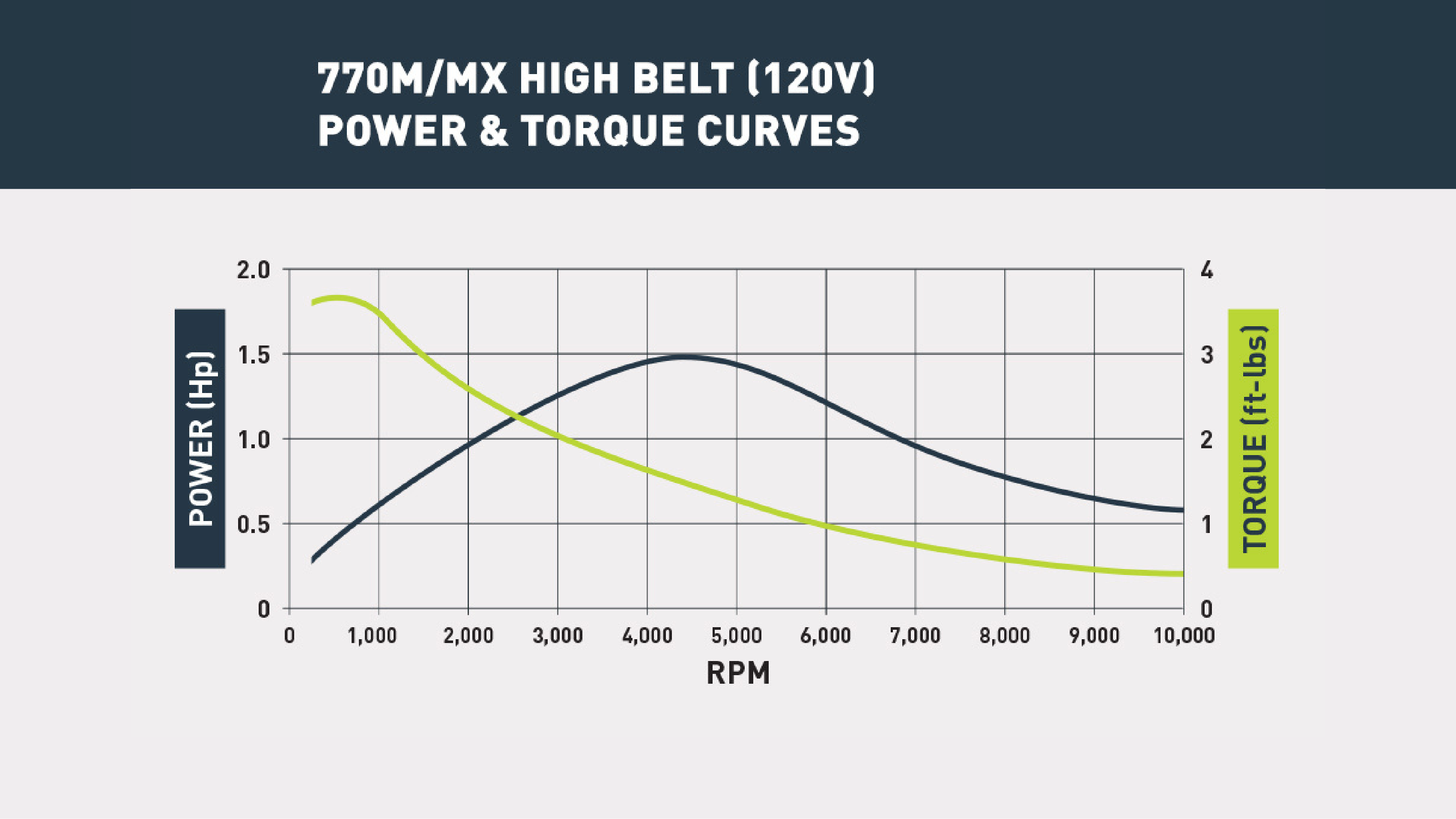

The middle lectures connect spindle power curves, torque at low RPM, radial chip thinning, and heat generation so students can predict when a strategy will chatter, rub, or overload. This made it easier to choose between high-efficiency and high-speed paths based on machine capability rather than preference.

Operational Impact in the Shop

Machine feedback closes the loop between a calculated starting point and a reliable process

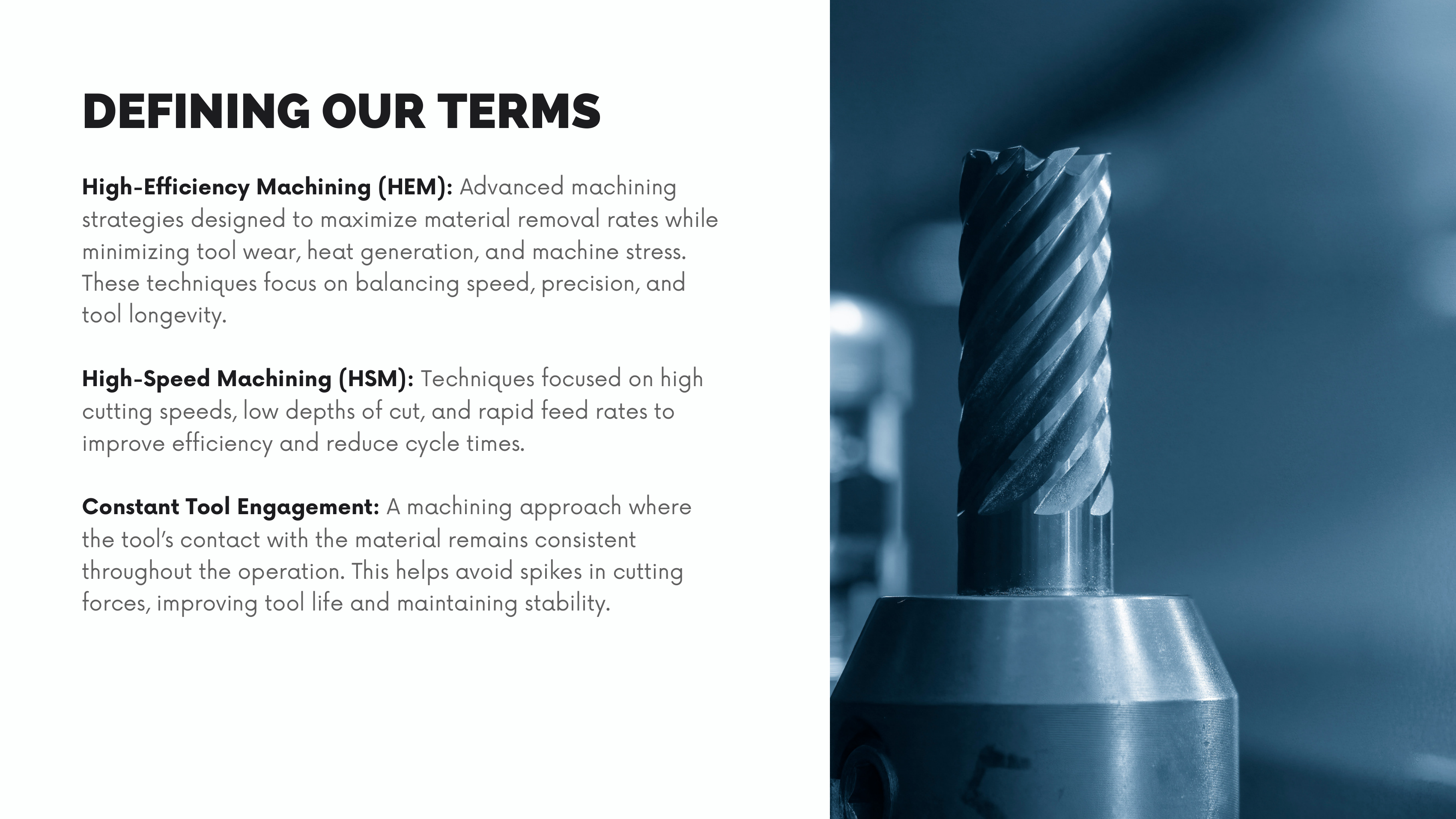

Later-stage lecture material used during advanced instruction

In workshops, students used simple calculations and machine constraints to justify parameter changes, then compared those expectations with spindle load, sound, chip formation, surface finish, and tool condition. The material was later reused in SOP discussions and advanced sessions. Those observations support the curriculum's practical use, but they do not substitute for a controlled assessment of learning outcomes.

A Reusable Decision Sequence

Separate instantaneous cutting demand from the machine's time-dependent thermal capacity

The full 70-page deck moves from mechanics and machine limits into practical CAM strategy.

A representative calculation moves from material and tool limits to surface speed, spindle speed, chip load, feed, engagement, and estimated power. Two relationships keep the chain visible:

vf=nzfzv_f = n z f_z

and

P=τωP = \tau \omega

The resulting cutting-power demand should be compared with the spindle's speed-dependent power and torque curves. Duty cycle is then treated as a duration and thermal-capacity constraint; it does not automatically reduce the instantaneous power required by the cut. This distinction is important when translating a short, aggressive toolpath into a safe continuous process.

Related Writings

Fundamentals of Advanced Machining (Lecture Series)

Technologies & Tools

Fusion 360 CAMCNC Milling (Fadal, Tormach)Machining TheoryPower ModelingCAD/CAM Post-processing
